Flexible Conduit

Q: What material of flexible conduit is best for my project?

The best flexible conduit material, whether PVC, flexible steel, PVC-coated steel, or stainless steel, depends on the environment, mechanical risk, and temperature of the project. PVC non-metallic conduit is an economical and common choice for indoor residential and light commercial locations with low corrosion risk. Flexible steel conduit provides better mechanical protection where abrasion or impact is likely. PVC-coated or liquid-tight options are better for outdoor or wet areas, while stainless steel, often grade 316, is recommended for highly corrosive or hygiene-sensitive environments. Always check the temperature and UV ratings on the product datasheet to ensure compatibility. PVC (non-metallic) - economical and suitable for indoor use up to approximately 60°C ambient; use where corrosion and mechanical risk are low. Choose a UV-stabilised version for exposed areas.

Q: How do I choose the right flexible conduit for outdoor use?

For outdoor applications, choose a liquid-tight flexible conduit with a minimum IP66 ingress protection rating and a UV-resistant outer jacket. Liquid-tight flexible metal conduit (LFMC) or PVC-coated flexible steel are common choices, as their jackets protect against moisture, splashes, and moderate corrosion. Always confirm the conduit’s UV rating and temperature range on the datasheet. To maintain the IP rating, pair the conduit with compatible liquid-tight glands and seals. For highly corrosive or marine environments, stainless steel conduit with corrosion-resistant glands is often the best option. Recommended types - LFMC or PVC-coated flexible steel for outdoor use, with an IP66 rating or higher. Use UV-resistant jackets and liquid-tight glands, such as nickel-plated brass, to preserve sealing and corrosion resistance.

Q: What are flexible conduit glands used for and how do I size them?

Flexible conduit glands are used to securely attach conduit to equipment or a junction box, providing strain relief and maintaining an environmental seal. The gland must match the conduit outer diameter and thread standard. Choose a gland whose clamping range fits the conduit outer diameter, with common sizes including 20 mm, 25 mm, 32 mm, and 40 mm, and make sure the thread type matches the enclosure, such as metric, PG, or NPT. For outdoor or wet locations, use liquid-tight glands to achieve an IP66 or IP68 rating. Sizing - match the gland clamping range to the conduit outer diameter and verify the thread type for a proper fit and seal.

Q: What is the difference between flexible and rigid conduit?

The main difference lies in their application and physical properties. Flexible conduit bends easily and is ideal for routing wiring through tight spaces or connecting to equipment that vibrates. Rigid conduit provides greater mechanical protection and is used for straight, permanent installations. Flexible conduit is commonly available in nominal sizes from 20 mm to 42 mm, making it suitable for final connections to motors and machinery. Rigid conduit, whether metal or PVC, is chosen for applications requiring high impact resistance, direct burial, or structural protection. Flexible conduit - ideal for tight spaces, motor leads, and equipment that moves or vibrates; common sizes are 20-42 mm for ease of routing.

Q: Which flexible conduit length is most cost-effective to buy?

For larger projects, buying flexible conduit in bulk rolls, such as 10 m, 30 m, or 50 m, is generally more cost-effective per metre than buying shorter cut lengths. Contractor packs and factory rolls often have a lower unit cost and may save around 10-30%. For smaller one-off jobs, buying per metre or in short pre-cut lengths can reduce waste. When comparing options, check the price per metre and factor in the amount of waste likely on the project. Cost comparison - compare the price per metre, as 10 m, 30 m, and 50 m rolls often offer the lowest unit price. Factor in expected waste and any delivery savings.

Q: Is flexible conduit suitable for high-temperature environments?

Yes, some types of flexible conduit are suitable for high-temperature environments, but suitability depends on the material and the manufacturer’s specified maximum operating temperature. Standard PVC conduits are typically rated for continuous use at around 60°C. For higher temperatures, choose heat-resistant thermoplastic or metal flexible conduits and always confirm the rating on the product datasheet. The conduit maximum operating temperature should meet or exceed both the cable insulation rating and the ambient site conditions. Temperature check - verify the manufacturer’s maximum continuous operating temperature on the datasheet; PVC is commonly around 60°C, while heat-rated or metal options are used for higher temperatures.

Frequently Asked Questions

What size flexible conduit do I need for electrical wiring?

The correct flexible conduit size, typically 20 mm, 25 mm, 32 mm, or 40 mm, depends on the combined cross-sectional area of the conductors it will house. It is crucial to consult conduit fill tables, either from the manufacturer or relevant wiring regulations, to determine the minimum internal area required. Once calculated, select the next largest nominal conduit size. For installations with multiple conductors, thicker insulation, or complex bends, it is wise to choose the next size up to simplify the pulling process and prevent overfilling. To avoid any issues, always verify the internal diameter and bending radius on the product datasheet before ordering. However, should you select the wrong size, our straightforward returns policy allows you to return unwanted goods within 28 days of dispatch, provided they are in their original, resalable condition.

How to calculate - use manufacturer or regulatory conduit fill tables to sum the conductor areas, then select a 20-42 mm conduit whose internal area meets or exceeds this total.

What material of flexible conduit is best for my project?

The best flexible conduit material-whether PVC, flexible steel, PVC-coated steel, or stainless steel-depends on the environment, mechanical risk, and temperature of your project. PVC (non-metallic) is an economical and common choice for indoor residential and light commercial locations with low corrosion risk. For areas where abrasion or impact is likely, flexible steel conduit offers superior mechanical protection. PVC-coated or liquid-tight options are better suited for outdoor or wet areas, while stainless steel (often grade 316) is recommended for highly corrosive or hygiene-sensitive environments. We stock a wide range of these materials, all processed for dispatch within 1-2 business days. Always check the temperature and UV ratings on the product datasheets to ensure compatibility.

PVC (non-metallic) - economical and suitable for indoor use up to approximately 60°C ambient; use where corrosion and mechanical risk are low. Choose a UV-stabilised version for exposed areas.

How do I choose the right flexible conduit for outdoor use?

For outdoor applications, select a liquid-tight flexible conduit with a minimum IP66 ingress protection rating and a UV-resistant outer jacket. Liquid-tight flexible metal conduit (LFMC) or PVC-coated flexible steel are common choices, as their jackets protect against moisture, splashes, and moderate corrosion. Always confirm the conduit’s UV rating and temperature range on the datasheet. To maintain the IP rating, it is essential to pair the conduit with compatible liquid-tight glands and seals. For highly corrosive or marine environments, we recommend opting for stainless steel conduit and corresponding corrosion-resistant glands.

Recommended types - LFMC or PVC-coated flexible steel for outdoor use, with an IP66 rating or higher. Use UV-resistant jackets and liquid-tight glands (e.g., nickel-plated brass) to preserve sealing and corrosion resistance.

What are flexible conduit glands used for and how do I size them?

Flexible conduit glands are used to securely attach a conduit to equipment or a junction box, providing strain relief and maintaining an environmental seal. It is vital that the gland matches the conduit's outer diameter and thread standard. Choose a gland whose clamping range fits the conduit's outer diameter (common sizes include 20 mm, 25 mm, 32 mm, and 40 mm) and has the correct thread type for the enclosure (e.g., metric, PG, or NPT). For outdoor or wet locations, use liquid-tight glands to achieve an IP66/IP68 rating. If you happen to order an incorrect size, our returns policy allows for exchanges, provided we are notified within 3 days of you receiving the goods.

Sizing - match the gland's clamping range to the conduit's outer diameter (20 mm, 25 mm, 32 mm, 40 mm) and verify the thread type (metric, PG, or NPT) for a proper fit and seal.

What is the difference between flexible and rigid conduit?

The primary difference lies in their application and physical properties. Flexible conduit, as the name suggests, bends easily and is ideal for routing wiring through tight spaces or connecting to equipment that vibrates. In contrast, rigid conduit offers superior mechanical protection and is used for straight, permanent installations. Flexible conduit is typically available in nominal sizes from 20 mm to 42 mm, making it perfect for final connections to motors and machinery. Rigid conduit (metal or PVC) is chosen for applications requiring high impact resistance, direct burial, or structural protection. At MCK Electrical, we offer a comprehensive selection of both types, with free delivery on orders over €100.

Flexible conduit - ideal for tight spaces, motor leads, and equipment that moves or vibrates; common sizes are 20-42 mm for ease of routing.

Which flexible conduit length is most cost-effective to buy?

For larger projects, buying flexible conduit in bulk rolls (e.g., 10 m, 30 m, or 50 m) is generally more cost-effective per metre than purchasing shorter, cut lengths. Contractor packs and factory rolls often have a lower unit cost, potentially saving you 10–30%. For small, one-off jobs, buying per metre or in short pre-cut lengths is better to avoid waste. When choosing, always compare the price per metre (€/m) and remember that larger orders can help you qualify for our free delivery service on purchases over €100. Even for bulky rolls, delivery is free on orders valued at €300 or more.

Cost comparison - compare the price per metre: 10 m, 30 m, and 50 m rolls often offer the lowest unit price. Factor in expected waste and potential delivery savings.

Is flexible conduit suitable for high-temperature environments?

Yes, specific types of flexible conduit are designed for high-temperature environments, but their suitability depends on the material and the manufacturer's specified maximum operating temperature. Standard PVC conduits are typically rated for continuous use at around 60°C. For higher temperatures, you should choose heat-resistant thermoplastic or metal flexible conduits, always confirming the rating on the product datasheet. Ensure the conduit's maximum operating temperature meets or exceeds both the cable insulation rating and the ambient site conditions. If you need a specialised high-temperature product, we can help, and all our orders are processed within 1-2 business days.

Temperature check - verify the manufacturer’s maximum continuous operating temperature on the datasheet (PVC is commonly ≈60°C; use heat-rated or metal options for higher temperatures).

Choosing the right flexible conduit size (20mm, 25mm, 32mm)

Selecting the correct outer diameter (OD), or trade size, is critical for a safe and compliant installation. Choosing your flexible conduit by OD alone without checking conduit fill tables is a common mistake that can lead to damaged cables or impossible pulls. To ensure a smooth installation, follow these practical steps:

Check your cable bundle: Use manufacturer or NEC conduit fill tables to calculate the required cross-sectional area for your wiring.
Size up for easier pulls: If you are running multiple cables or anticipate a difficult pull, always select the next size up. While a single cable might easily fit a 20mm or 25mm flexible conduit option, multi-cable runs often require 32mm, 40mm, or even 42mm sizes.
Verify accessory compatibility: Ensure your chosen size matches the corresponding glands and connectors.

If you are unsure about specific fill capacities, we highly recommend requesting the manufacturer's datasheet or consulting a flexible conduit size chart before making your final decision.

Selecting the best flexible conduit material: PVC, PVC-coated steel, or metal

Assuming all flexible conduit types are equivalent is a frequent oversight that can compromise your wiring. The jacket and coating material directly impact corrosion resistance, UV stability, and overall durability. Here is how to select the right material for your environment:

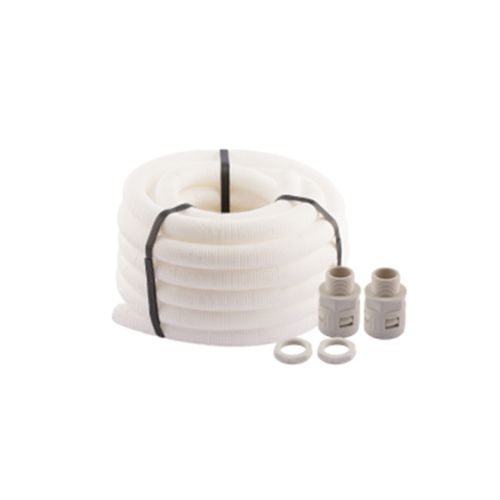

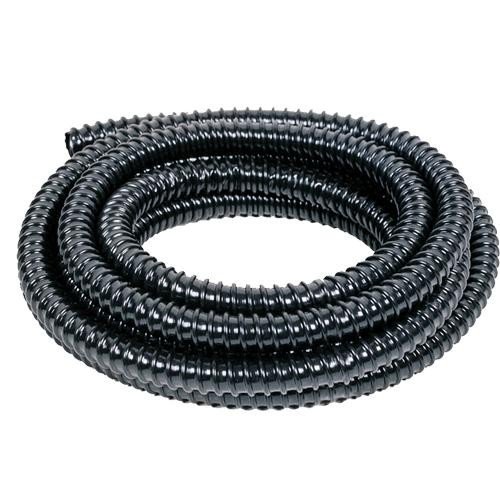

PVC flexible conduit: These non-metallic, often corrugated options (including white variants) are highly economical and perfect for simple indoor residential runs.

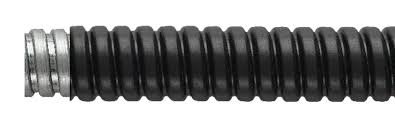

PVC-coated flexible steel conduit: Offering strong mechanical protection, this material is ideal for outdoor appliance connections and wet environments, especially when paired with compatible liquid-tight glands.
Metal flexible conduit: Standard flexible steel options are the best choice for heavy-duty industrial use, corrosive environments, or hygiene-sensitive areas.

Always consider whether your application requires a liquid-tight or non-liquid-tight solution. Since specific temperature and IP ratings vary by product, be sure to request the manufacturer's datasheet to confirm the material meets your exact environmental needs.

Matching flexible conduit glands and connectors

A secure installation relies entirely on proper accessory compatibility. Buying a gland that does not match your thread size or cable clamping range will lead to failed equipment entries and compromised seals. When selecting flexible conduit glands for appliance terminations or waterproof sealing, use this quick compatibility checklist:

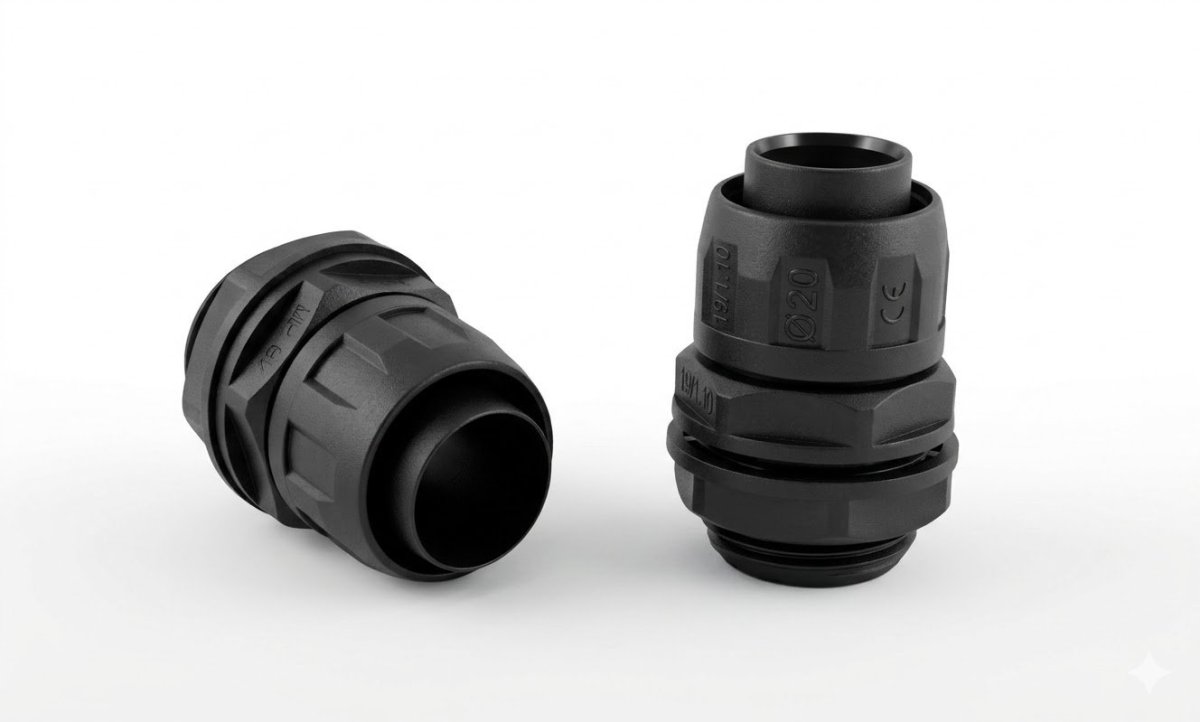

Match the OD: Ensure your gland matches the conduit size. We offer a variety of options, including a 20mm flexible conduit gland, 25mm gland, and 32mm gland.

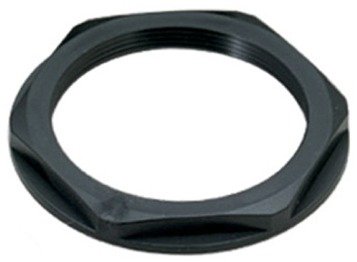

Verify the thread size: Check the specific thread type (such as metric vs. PG/NPT) if it is unspecified. For larger 42mm conduits, an M40 gland flexible conduit fitting or a PVC Locknut M40 is typically required.
Consider the material: Choose fittings that match your environment, such as brass nickel-plated glands (available in 20mm and 25mm) for added durability.
Check the clamping range: Always verify the cable clamping range on the product page to ensure a snug, secure fit around your wiring.

Should you accidentally order the incorrect part, our returns policy is simple. We accept returns for goods that are no longer required within 28 days of dispatch, provided the product is in its original packaging and in a resalable condition.

Waterproof and outdoor-ready flexible conduit: IP and liquid-tight guidance

A common mistake during installation is buying standard, non-liquid-tight conduit for outdoor or wet locations. If you are working on exterior HVAC terminations or outdoor appliance connections, you must use a liquid-tight flexible conduit (LFMC/LFNC) or PVC-coated steel paired with compatible liquid-tight glands.

Note that specific IP ratings are not always explicitly listed in the product descriptions. You should never assume a product is a waterproof flexible conduit without verification. If you are looking for flexible conduit for outdoor use and the IP66+ rating is unspecified, always assume it is not rated for wet conditions. Your safest next step is to request the manufacturer's datasheet to confirm its weatherproof capabilities before proceeding with your installation.

Installation tip: conduit fill, bend radius, and pullability

Proper planning prevents difficult pulls and extends the lifespan of your wiring, especially in tight routing into equipment or repeated-flex applications. Keep these essential 'dos and don'ts' in mind for a successful installation:

Do calculate conduit fill: Always use manufacturer or NEC tables to determine how many cables can safely fit inside your conduit.
Don't ignore the flexible conduit bending radius: Over-bending or overfilling the conduit leads to severe pull failures and damages the internal cables. Ensure your installation bends are wider than the manufacturer's minimum bend radius.
Do request datasheets: For exact numeric values regarding bend radii and fill capacities, always consult the product's technical documentation.
Do compare costs smartly: When choosing between a standard length or a contractor pack of flexible conduit, compare the price per metre to find the best value for your project.

Certification and datasheet verification for flexible conduit

Ensuring your installation meets local building codes is essential. Assuming compliance without checking the product's datasheet or physical markings is a significant risk. Because specific UL, EN, IEC, or NEC compliance tags are not always displayed on the product pages, you must verify certified flexible conduit ratings.

Before specifying a product for your project, always request the supplier's datasheet to confirm:

Required jurisdictional listing marks (e.g., UL, CE).
Specific temperature and IP ratings.
Specialised flexible conduit compliance requirements, such as low-smoke, halogen-free, or plenum ratings.

Filter our selection by size and material to find the right fit, whether you need a cut length per metre, a 10m contractor pack, or a 30m to 50m roll. With orders processed within 1-2 business days and standard delivery times of just 1-2 business days within the Republic of Ireland, you can get the parts you need quickly. Plus, enjoy free delivery on orders over €100. To verify IP ratings, temperature limits, or certifications, contact our technical sales team to request datasheets and discuss bulk pricing for your next project.
