LED Floodlights

Whether you're a homeowner upgrading your driveway lighting or an installer outfitting a commercial car park, outdoor LED floodlights provide essential security and visibility. These highly durable and energy-efficient fixtures are perfect for garden feature lighting, signage, and heavy-duty architectural applications. Choose from trusted brands like Philips, Bell, Lumeno, Robus, Thorn, Steinel, and Source, and use the practical guide below to match the right LED security floodlight features to your project needs.

Frequently Asked Questions

What wattage LED floodlight do I need for different outdoor areas?

Choose 10-30W for small paths and signage, 50W for medium-sized driveways or security lighting, and 100-200W or more for large car parks or building facades. In practical terms, a 10W floodlight typically delivers roughly 800-1,500 lumens, a 50W unit about 4,000-6,500 lumens, and 100-200W fixtures supply approximately 8,000-20,000 lumens, depending on LED efficacy and beam angle. When selecting the wattage, factor in the mounting height (higher mounts need higher wattage), beam angle (narrower beams concentrate light), and desired lux levels-for security lighting, aim for 20-50 lux on key surfaces.

What IP rating do I need for an outdoor LED floodlight?

Use IP65 as the minimum for exposed outdoor LED floodlights; IP65 protects against dust and low-pressure water jets, while IP54 is only acceptable for sheltered or covered locations. IP65-rated fixtures are suitable for walls, car parks and exposed security lighting, and are the most commonly available outdoor floodlights. For installations with heavy water exposure, such as drive-throughs or areas with jet cleaning, choose IP66 or higher. Always check the manufacturer's IP test standard (e.g., IEC 60529) and confirm the seals and cable gland ratings during installation.

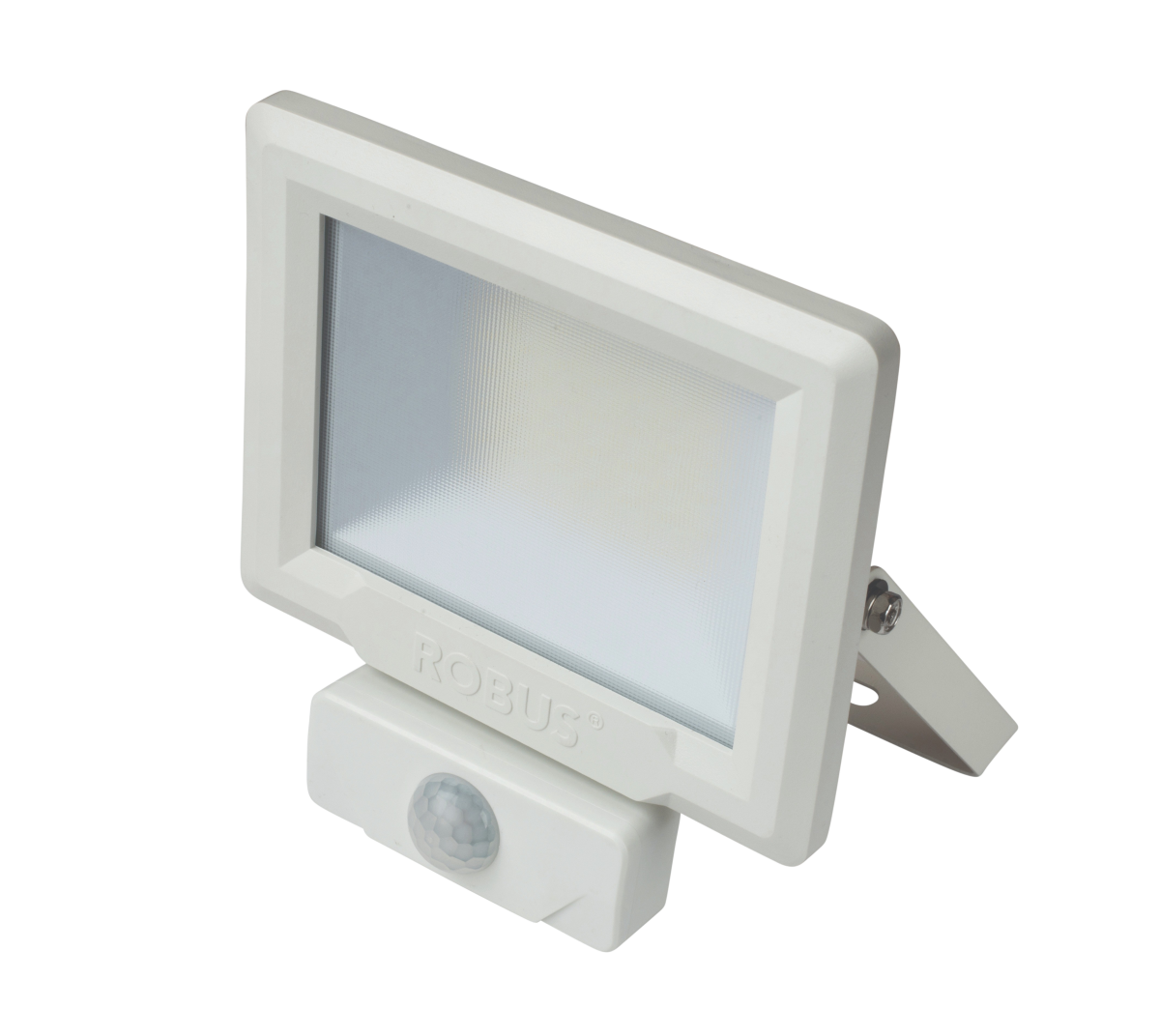

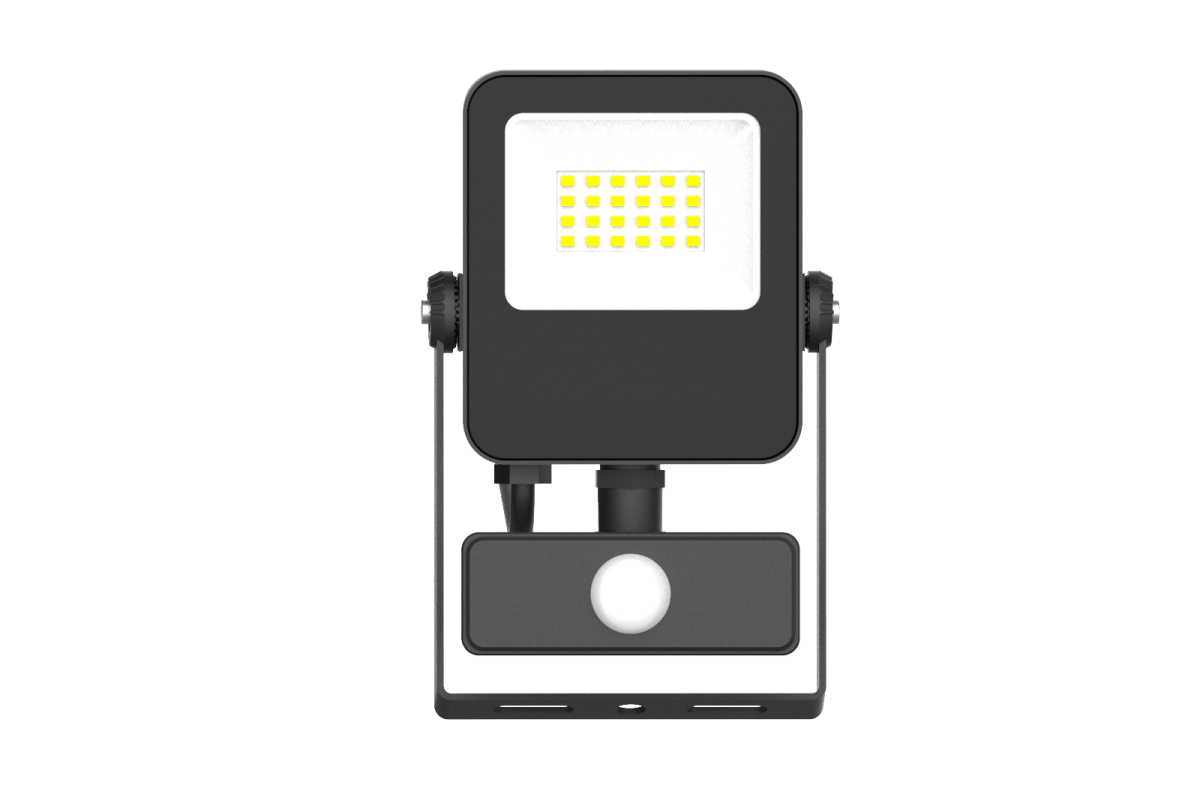

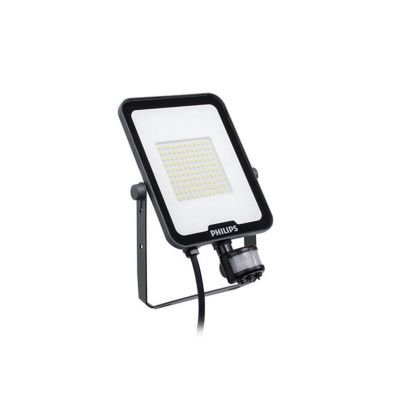

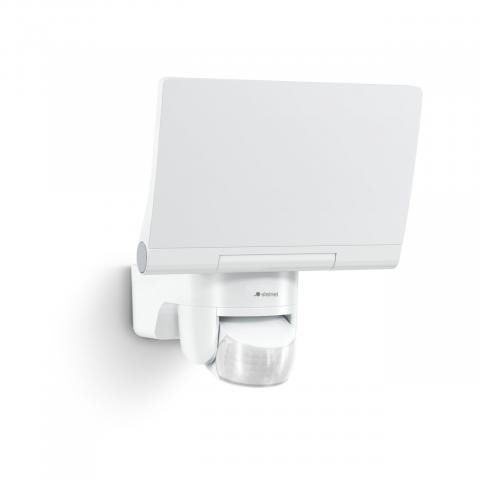

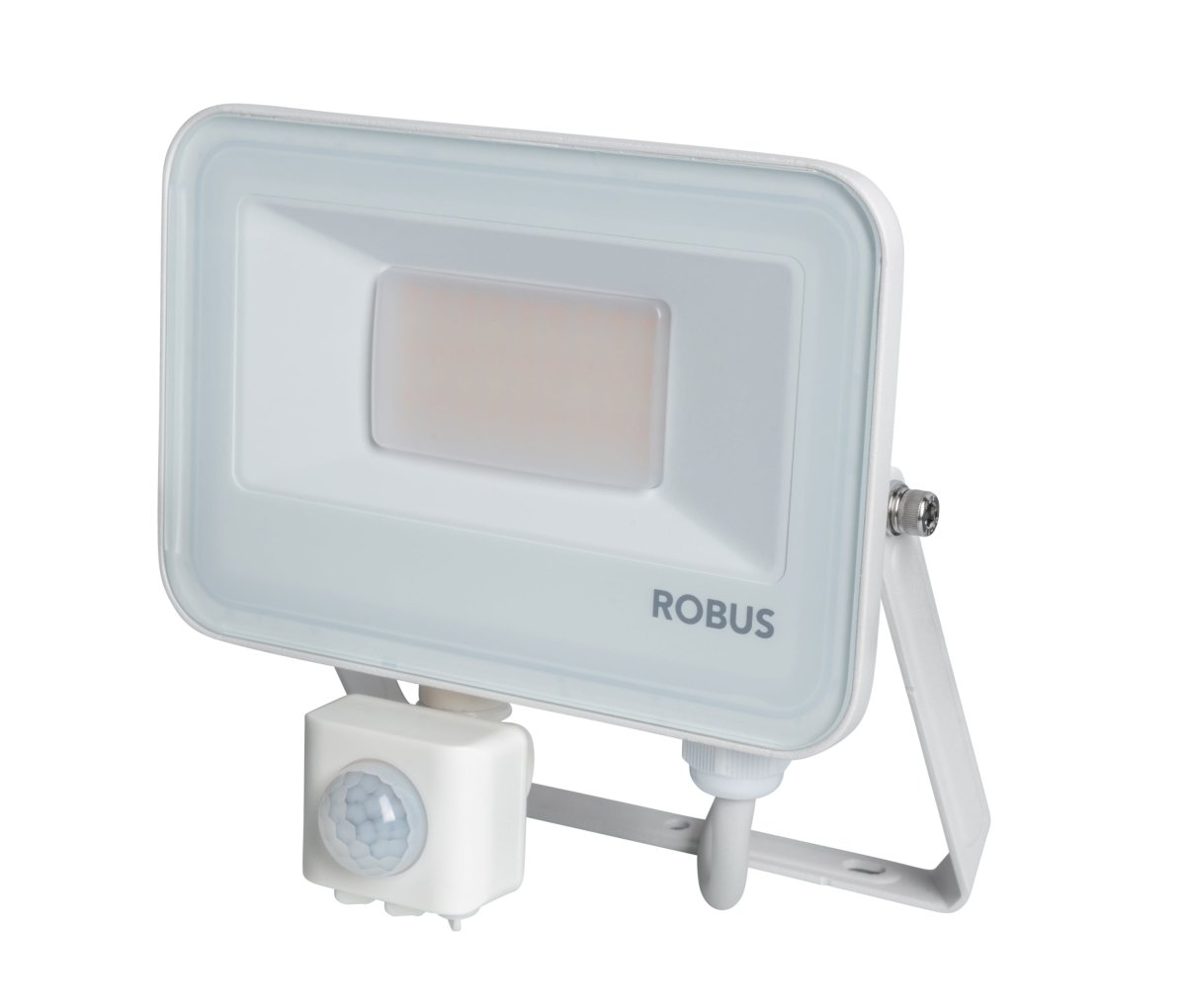

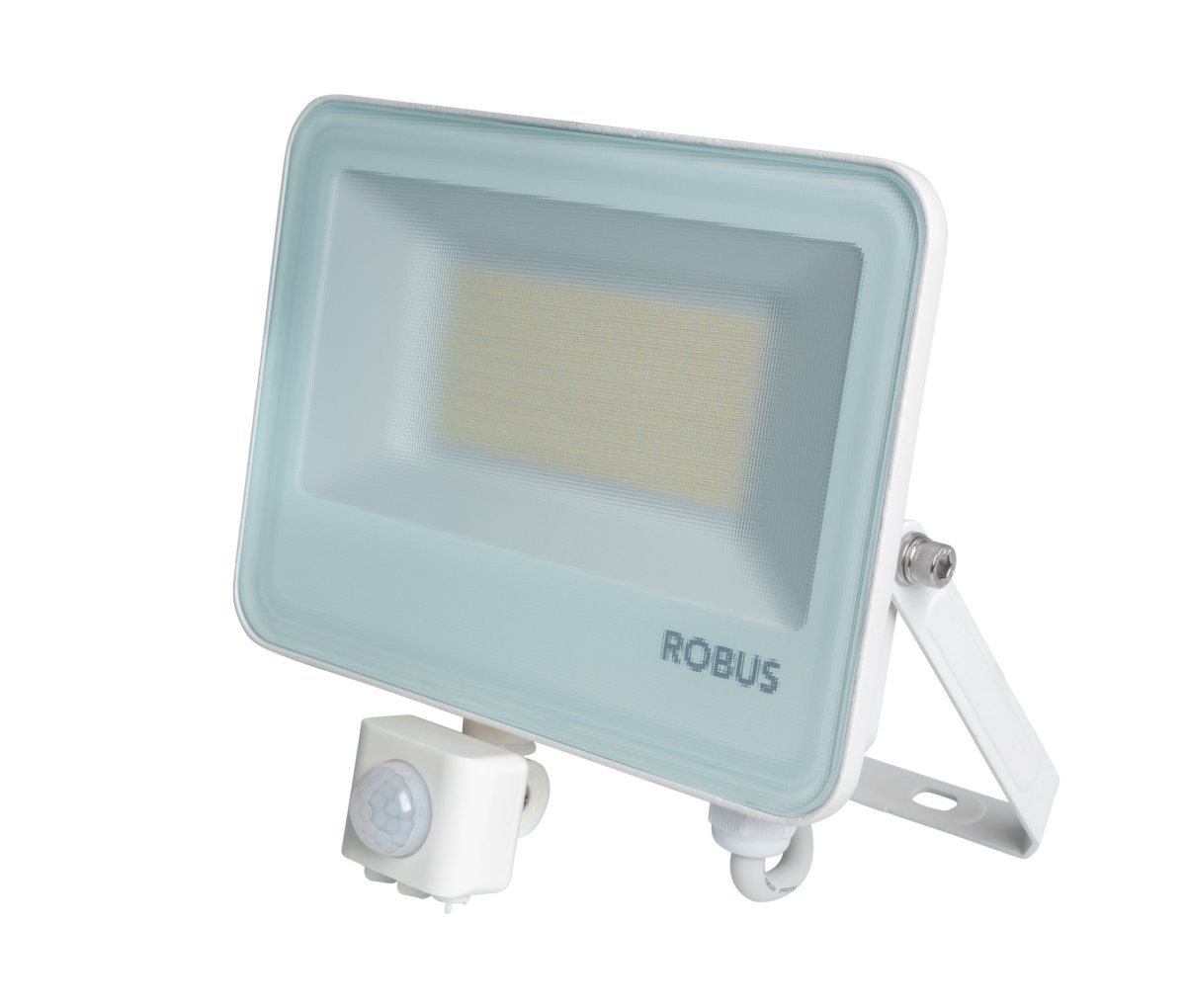

Should I buy an LED floodlight with a PIR sensor?

Yes, buying an LED floodlight with a PIR (Passive Infrared) sensor is recommended for most domestic and small commercial sites because it improves security and reduces operating hours. Typical PIR-equipped floodlights have detection ranges of 8-12 metres and detection angles of around 100-120°, which is sufficient for driveways, yards and entryways. A PIR sensor activates the light only when motion is detected, lowering continuous run time and cutting energy use compared to always-on fixtures. Choose models with adjustable sensitivity, time delay and dusk-to-dawn settings for optimal performance.

What colour temperature (K) is best for an outdoor LED floodlight?

Choose 3000K for warm decorative lighting, 4000K for neutral functional lighting, and CCT-selectable fixtures if you need flexibility between tones. Specifically, 3000K (warm white) creates a welcoming ambiance for gardens and architectural accents, while 4000K (neutral white) offers higher visual clarity and contrast for security, task and commercial areas. Many installers select 4000K for security lighting to improve object recognition at night. If you are uncertain, pick CCT-selectable models that allow on-site selection between 3000K and 4000K to match the application.

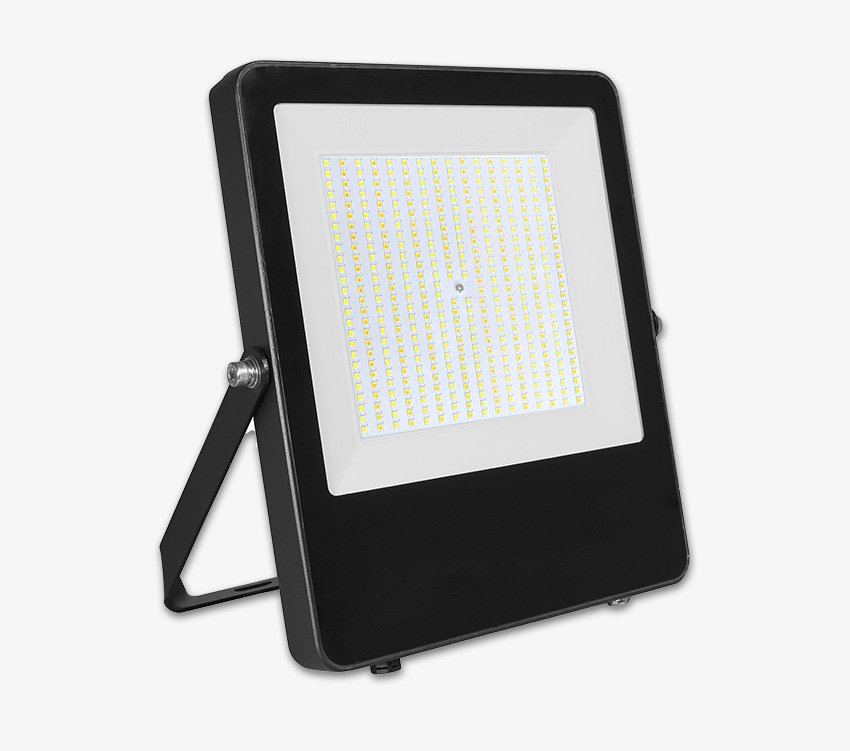

What is CCT in an LED floodlight and how does it affect light appearance?

CCT (Correlated Colour Temperature) measures the appearance of white light from an LED in Kelvin (K). Common outdoor values are 3000K (warm) and 4000K (neutral), with ranges typically from 2700K to 6500K. Lower Kelvin values like 3000K appear warmer and more amber, while higher values like 4000K-5000K appear more neutral to cool white. CCT affects ambiance, visibility and perceived brightness: warmer tones suit decorative residential settings, neutral tones are ideal for security and task lighting, and higher Kelvin values can make details more visible at night.

Is an integrated LED floodlight repairable or should it be replaced when faulty?

Integrated LED floodlights have LEDs mounted directly into the fixture and are usually not designed for user-replaceable lamps; if the LEDs or internal driver fail, you will often need to replace the entire luminaire. Many manufacturers back their integrated designs with warranties of 36-60 months (3-5 years), so prioritise products with long guarantees from reputable brands to reduce the risk of replacement. For long-term serviceability, consider modular fixtures with replaceable drivers or look for suppliers that offer spare parts and repair services.

Choosing an energy-efficient LED floodlight: wattage vs. lumens

When selecting an energy-efficient LED floodlight, it's easy to focus solely on wattage, as it frequently appears in product names. However, while wattage measures power consumption, lumen output (lm) is the true metric for brightness. A common mistake is choosing a fixture based on wattage alone without considering its lumens or beam angle.

To help you find the right fit, here's a practical guide to typical wattage indicators and their best applications:

10W to 30W LED floodlights: Ideal for garden paths, small driveways, and signage.
50W LED floodlights: The sweet spot for main driveways, standard security lighting, and small commercial areas.
100W to 200W LED floodlights (and higher): Designed for large car parks, expansive commercial spaces, and building façades.

Choose fixtures that publish clear lumen outputs and beam angles on their datasheets. If a datasheet is missing specific lumen or efficacy (lm/W) figures, you can make conservative brightness estimates. Remember that mounting height and beam angle will affect how that light is distributed, and you should ensure long-term reliability by checking driver quality and serviceability in integrated-LED designs.

Waterproof LED floodlight: IP65 vs. IP54 ratings explained

Outdoor environments demand strong weather protection, making the Ingress Protection (IP) rating a critical factor in your decision. A frequent mistake is buying IP54 fixtures for fully exposed locations where a higher rating is required.

IP65 LED floodlights: This rating should be your baseline for any exposed outdoor mounting, such as on open walls, perimeters, or car parks, as it offers strong protection against dust and low-pressure water jets.
IP54 LED floodlights: These are only suitable for covered or sheltered locations, like under eaves or within a protected porch.

If your installation site faces extreme conditions, such as high-pressure cleaning or occasional submersion, you will need to specify IP66 or IP67 fixtures. Additionally, for coastal areas or environments with a high risk of impact, always check the datasheet for an appropriate IK (impact protection) rating and corrosion-resistant housing materials to ensure your waterproof LED floodlight lasts.

LED floodlight with a PIR sensor: PIR vs. microwave explained

Adding motion detection to your lighting setup saves energy and enhances safety, but you need to choose the right technology for your space.

PIR (Passive Infrared) sensors: LED floodlights with PIR sensors are highly cost-effective and reliable for typical domestic security lighting, driveways, and doorways. They require a direct line of sight to detect movement and generally have a shorter range.

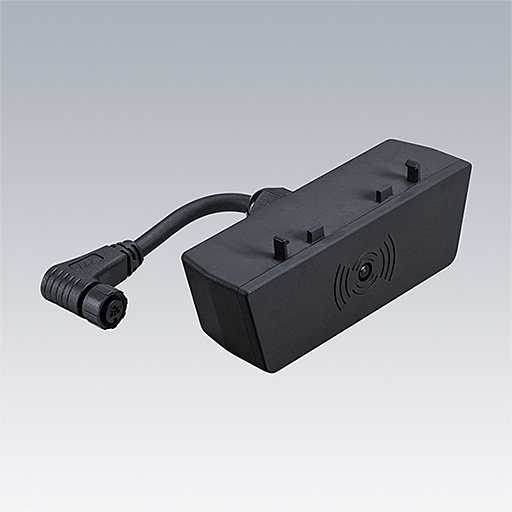

Microwave sensors: Often available as a plug-in accessory, microwave sensors offer larger coverage and can penetrate obstructions. While excellent for expansive or obstructed commercial sites, they do carry a higher risk of false triggers and can be more expensive.

When installing your motion sensor LED floodlight, pay close attention to the recommended mounting height and sensor range. Prevent false triggers by adjusting the sensitivity and timer settings during installation to suit the specific environment, and always verify the exact detection specifications on the manufacturer's datasheet.

Filter our range by wattage, IP rating, colour temperature, and sensor type to find the exact match for your installation. Always download the product datasheets to verify crucial details like lumens, beam angles, CRI, and dimming capabilities before making a final selection. If you need tailored advice or help prioritising lumens and weather protection for your specific project, contact our support team for expert guidance.
